Pneumatic Muffler | Pneumatic Silencer

porous plastic silencer

PSU porous plastic silencer is more compact, efficient and lightweight, which is used on the exhausts of valves to reduce the noise and prevent metal chips, abrasive grits, dust and other contaminants from entering open exhaust ports and causing premature valve failure.

Material of PSU Porous Plastic Silencer

  • Body(noise absorbing material): Polyethylene
  • Base(thread): Acetal Plastic

Construction | Specifications

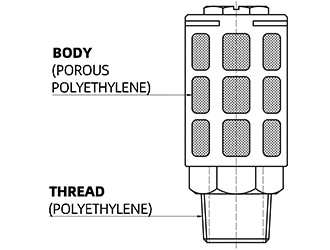

construction of porous plastic silencer
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -10～60°C | 14～140°F
Body(noise absorbing material): Polyethylene
Base(thread): Acetal Plastic

Products of PSU Porous Plastic Silencer

Part No. Male Thread Size
PSU 01 R, PT, BSPT 1/8
PSU 02 R, PT, BSPT 1/4
PSU 03 R, PT, BSPT 3/8
PSU 04 R, PT, BSPT 1/2
PSU 06 R, PT, BSPT 3/4
PSU 08 R, PT, BSPT 1
PSU M5 M5 x 0.8
PSU G01 BSPP, G 1/8
PSU G02 BSPP, G 1/4
PSU G03 BSPP, G 3/8
PSU G04 BSPP, G 1/2
PSU G06 BSPP, G 3/4
PSU G08 BSPP, G 1
PSU N01 1/8 NPT
PSU N02 1/4 NPT
PSU N03 3/8 NPT
PSU N04 1/2 NPT
PSU N06 3/4 NPT
PSU N08 1 NPT

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.
