Pneumatic Muffler

hexagon sintered bronze silencer

BSLE hexagon sintered bronze silencer is made from sintered bronze fully. BSLE hexagon sintered bronze silencer can be externally tightened by a flat wrench or socket wrench.

Material of Hexagon Sintered Bronze Silencer

  • Body(noise absorbing material): Sintered Bronze
  • Base(thread): Sintered Bronze

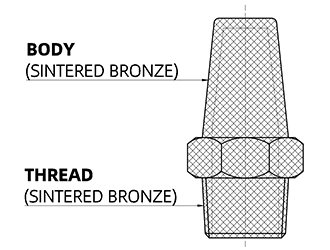

Construction | Specifications

material of hexagon sintered bronze muffler
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -10～80°C | 14～176°F
Body(noise absorbing material): Sintered Bronze
Base(thread): Sintered Bronze

Products of BSLE Hexagon Sintered Bronze Silencer

Part No. Male Thread Size
BSLE 01 R, PT, BSPT 1/8
BSLE 02 R, PT, BSPT 1/4
BSLE 03 R, PT, BSPT 3/8
BSLE 04 R, PT, BSPT 1/2
BSLE 06 R, PT, BSPT 3/4
BSLE 08 R, PT, BSPT 1
BSLE G01 BSPP, G 1/8
BSLE G02 BSPP, G 1/4
BSLE G03 BSPP, G 3/8
BSLE G04 BSPP, G 1/2
BSLE G06 BSPP, G 3/4
BSLE G08 BSPP, G 1
BSLE N01 1/8 NPT
BSLE N02 1/4 NPT
BSLE N03 3/8 NPT
BSLE N04 1/2 NPT
BSLE N06 3/4 NPT
BSLE N08 1 NPT
BSLE M8×1 M8 x 1
BSLE M8×1.25 M8 x 1.25
BSLE M10×1 M10 x 1
BSLE M10×1.25 M10 x 1.25
BSLE M12×1.25 M12 x 1.25
BSLE M14×1.5 M14 x 1.5
BSLE M16×1.5 M16 x 1.5
BSLE M20×1.5 M20 x 1.5

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.
