Pneumatic Mufflers | Silencers | Filters

Sintered Bronze Silencer, Sintered Bronze Muffler

BSLD sintered bronze silencer is made from sintered bronze fully. A slot on the top of sintered bronze silencer is for thread mounting. BSLD sintered bronze silencer is used to reduce the noise and prevent contamination from entering open exhaust ports and causing premature valve failure.Thread ranges from 1/8" to 1".

Material of Pneumatic Sintered Bronze Silencer

  • Body(noise absorbing material): Sintered Bronze
  • Base(thread): Sintered Bronze

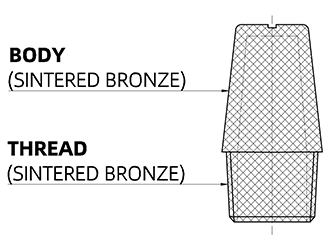

Construction | Specifications

structure of sintered bronze muffler
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -10～80°C | 14～176°F
Body(noise absorbing material): Sintered Bronze
Base(thread): Sintered Bronze

Products of BSLD Sintered Bronze Silencer - Sintered Bronze Muffler

Part No. Male Thread Size
BSLD 01 R, PT, BSPT 1/8
BSLD 02 R, PT, BSPT 1/4
BSLD 03 R, PT, BSPT 3/8
BSLD 04 R, PT, BSPT 1/2
BSLD 06 R, PT, BSPT 3/4
BSLD 08 R, PT, BSPT 1
BSLD G01 BSPP, G 1/8
BSLD G02 BSPP, G 1/4
BSLD G03 BSPP, G 3/8
BSLD G04 BSPP, G 1/2
BSLD G06 BSPP, G 3/4
BSLD G08 BSPP, G 1
BSLD N01 1/8 NPT
BSLD N02 1/4 NPT
BSLD N03 3/8 NPT
BSLD N04 1/2 NPT
BSLD N06 3/4 NPT
BSLD N08 1 NPT
BSLD M8×1 M8 x 1
BSLD M8×1.25 M8 x 1.25
BSLD M10×1 M10 x 1
BSLD M10×1.25 M10 x 1.25
BSLD M12×1.25 M12 x 1.25
BSLD M14×1.5 M14 x 1.5
BSLD M16×1.5 M16 x 1.5
BSLD M20×1.5 M20 x 1.5

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.
