Slot Sintered Bronze Silencer

compact sintered bronze silencer, screwdriver slot brass silencer

BSFL is a kind of miniature sintered bronze silencer (also called compact sintered bronze silencer), which is used to reduce the noise and prevent metal chips, abrasive grits, dust and other contaminants from entering open exhaust ports. Screwdriver slot is for screwing the sintered silencer into female thread to save space.

Material of Miniature Sintered Bronze Silencer

  • Body(noise absorbing material): Sintered Bronze
  • Base(thread): Brass

Construction | Specifications

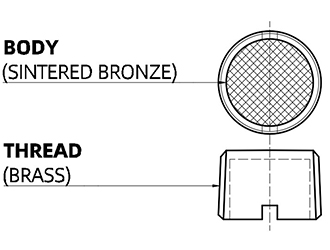

structure of compact sintered bronze silencer
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -10～80°C | 14～176°F
Body(noise absorbing material): Sintered Bronze
Base(thread): Brass

Products of BFSL Compact Sintered Bronze Silencer

Part No. Male Thread Size
BFSL 01 R, PT, BSPT 1/8
BFSL 02 R, PT, BSPT 1/4
BFSL 03 R, PT, BSPT 3/8
BFSL 04 R, PT, BSPT 1/2
BFSL 06 R, PT, BSPT 3/4
BFSL 08 R, PT, BSPT 1
BFSL G01 BSPP, G 1/8
BFSL G02 BSPP, G 1/4
BFSL G03 BSPP, G 3/8
BFSL G04 BSPP, G 1/2
BFSL G06 BSPP, G 3/4
BFSL G08 BSPP, G 1
BFSL N01 1/8 NPT
BFSL N02 1/4 NPT
BFSL N03 3/8 NPT
BFSL N04 1/2 NPT
BFSL N06 3/4 NPT
BFSL N08 1 NPT
BFSL M8×1 M8 x 1
BFSL M8×1.25 M8 x 1.25
BFSL M10×1 M10 x 1
BFSL M10×1.25 M10 x 1.25
BFSL M12×1.25 M12 x 1.25
BFSL M14×1.5 M14 x 1.5
BFSL M16×1.5 M16 x 1.5
BFSL M20×1.5 M20 x 1.5

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.

Parent Category: Pneumatic Mufflers | Silencers | Filters
