PU 10 | 10mm Union Straight Connector, 10mm Push in Fitting
PU 10 - 10mm union straight connector is a type of plastic push in fitting (10mm push to connect fitting). PU 10 - 10mm union straight connector is used to connect two 10mm outside diameter pneumatic metric tubings in the same direction.
Product Attributes
| Push-in Tubing O.D: | 10mm |
| Fluid Admitted: | Air, Vaccum, Water(no freezing) |
| Body Material: | PBT |
| Seal, O-ring: | NBR |
| Working Pressure: | 0∼1.0MPa | 0∼150psi |
| Proof Pressure: | 3.0Mpa | 435psi |
| Negative Pressure: | -100Kpa | -29.5 In Hg |
| Working Temperature: | 0∼60°C | 32∼140°F |
| Lock Claw: | Stainless Steel(SUS) |
| Applicable Tube: | PU / PA / PE / PVC |

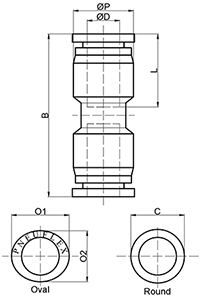

Dimensions of 10mm push in fitting union straight
3D Construction
Optional Shapes and Colors of Release Sleeve
For your information: Pneuflex produces 600,000pcs - 800,000pcs of 10mm union straight connector push in fittings (10mm push in fittings) every month. Export to North America, Europe, South America...
