PU 1/2 | 1/2" Union Straight Push in Fitting | 1/2" Push to Connect Fitting

PU 1/2 - 1/2" union straight push in fitting (also called 1/2" push to connect fitting) is used to connect two 1/2" O.D inch tubes in the same direction. 1/2" push to connect fitting allows to connect and disconnect tube easily without damage. 1/2" push to connect fitting is designed to use with PU, Nylon, PE, PVC, Teflon tube.

union straight connector with 1/2 tubing | push in fitting
Product Attributes
Push-in Tubing O.D: 1/2"
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: PBT
Seal, O-ring: NBR
Working Pressure: 0∼1.0MPa | 0∼150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0∼60°C | 32∼140°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / PVC
Request for Quotation

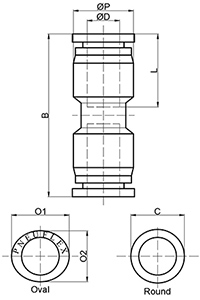

Dimensions of 1/2" - 1/2" Push to Connect Fittings | Union Straight Push in Fitting

drawing of PU 1/2 | 1/2" Union Straight Push in Fitting | 1/2" Push to Connect Fitting

3D Construction

3D construction of 1/2 push in fitting union straight

Optional Shapes and Colors of Release Sleeve

release sleeverelease sleeve

∅ 1/2" tubing push in fitting union straight | 1/2 Inch push in fittings | 1/2" push to connect fittings
