Pneumatic Mufflers | Silencers | Filters

stainless steel silencer with filter wire net, high flow

Pneumatic stainless steel silencer with filter wire net is a kind of high flow stainless steel silencer, which is used to reduce the noise and prevent metal chips, abrasive grits, dust and other contaminants from entering open exhaust ports. External tightening stainless steel silencer with a flat wrench or socket wrench. Available thread size ranges from M5, 10-32UNF to 2".

Material of Stainless Steel Silencer with Filter Wire Net (High Flow)

  • Body(noise absorbing material): Stainless Steel Filter Wire Net (SS304, SS316, SS316L)
  • Base(thread): Stainless Steel (SS304, SS316, SS316L)

Construction | Specifications

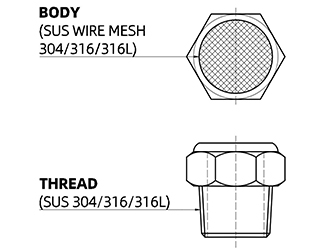

construction of stainless steel mesh screen breather vent silencer
Fluid Admitted: Compressed Air
Working Pressure: 0~1.0MPa | 0~150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: -25～150°C | -13～302°F
Body(noise absorbing material): Stainless Steel Filter Wire Net
Base(thread): Stainless Steel

Products of SSFM Stainless Steel Silencer with Filter Wire Net (High Flow)

Part No. Male Thread Size
SSFM 01 R, PT, BSPT 1/8
SSFM 02 R, PT, BSPT 1/4
SSFM 03 R, PT, BSPT 3/8
SSFM 04 R, PT, BSPT 1/2
SSFM 06 R, PT, BSPT 3/4
SSFM 08 R, PT, BSPT 1
SSFM G01 BSPP, G 1/8
SSFM G02 BSPP, G 1/4
SSFM G03 BSPP, G 3/8
SSFM G04 BSPP, G 1/2
SSFM G06 BSPP, G 3/4
SSFM G08 BSPP, G 1
SSFM U10 10-32UNF
SSFM N01 1/8 NPT
SSFM N02 1/4 NPT
SSFM N03 3/8 NPT
SSFM N04 1/2 NPT
SSFM N06 3/4 NPT
SSFM N08 1 NPT
SSFM M5×0.8 M5 x 0.8
SSFM M6×1 M6 x 1
SSFM M8×1 M8 x 1
SSFM M8×1.25 M8 x 1.25
SSFM M10×1 M10 x 1
SSFM M10×1.25 M10 x 1.25
SSFM M12×1.25 M12 x 1.25
SSFM M14×1.5 M14 x 1.5
SSFM M16×1.5 M16 x 1.5
SSFM M20×1.5 M20 x 1.5

* Not all Metric thread sizes are list here. Pls contact us if you would order other Metric thread sizes.
